property ExFileView.FilterBarDropDownWidth(ColumnName as String) as Double
Specifies the width of the drop down filter window proportionally with the width of the control's column. /*not supported in the lite version*/

TypeDescription
ColumnName as String A string expression that indicates the column's name. The valid values are: 'Name', 'Size', 'Modified', 'Type', 'In Folder'
Double A double expression that indicates the width of the drop down filter window.
Use the FilterBarDropDownWidth property to specify the width of the drop down window filter window. Use the ColumnFilterButton property to display a filter button to the column's caption. BY default, the FilterBarDropDownWidth property is 1. It means, the width of the drop down filter window is the same with the width of the column.

If the FilterBarDropDownWidth property is negative, the absolute value of the FilterBarDropDownWidth property indicates the width of the drop down filter window in pixels. In this case, the width of the drop down filter window is not proportionally with the width of the column. For instance, the following sample specifies the width of the drop down filter window being 100 pixels:

With ExFileView1
    .FilterBarDropDownWidth("Name") = -100
End With

If the FilterBarDropDownWidth property is greater than 0, it indicates the width of the drop down filter window proportionally with the width of column. For instance, the following sample specifies the width of the drop down filter window being half of the width of the column:

With ExFileView1
    .FilterBarDropDownWidth("Name") = 0.5
End With

The drop down filter window always include an item.

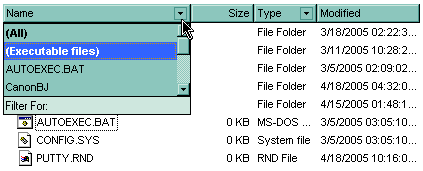

The following VB sample adds custom filter patterns for executable files:

With ExFileView1
    .FilterBarDropDownHeight = 0.7
    .ColumnFilterButton("Name") = True
    .AddColumnCustomFilter "Name", "(Executable files)", "*.exe|*.com|*.bat"
End With

The following C++ sample adds custom filter patterns for executable files:

m_fileview.SetFilterBarDropDownHeight( 0.7 );
m_fileview.SetColumnFilterButton("Name", TRUE );
m_fileview.AddColumnCustomFilter("Name", "(Executable files)", "*.exe|*.com|*.bat");

The following VB.NET sample adds custom filter patterns for executable files:

With AxExFileView1
    .FilterBarDropDownHeight = 0.7
    .set_ColumnFilterButton("Name", True)
    .AddColumnCustomFilter("Name", "(Executable files)", "*.exe|*.com|*.bat")
End With

The following C# sample adds custom filter patterns for executable files:

axExFileView1.FilterBarDropDownHeight = 0.7;
axExFileView1.set_ColumnFilterButton("Name", true);
axExFileView1.AddColumnCustomFilter("Name", "(Executable files)", "*.exe|*.com|*.bat");

The following VFP sample adds custom filter patterns for executable files:

With thisform.ExFileView1
    .FilterBarDropDownHeight = 0.7
    .Object.ColumnFilterButton("Name") = .t.
    .AddColumnCustomFilter("Name", "(Executable files)", "*.exe|*.com|*.bat")
EndWith
