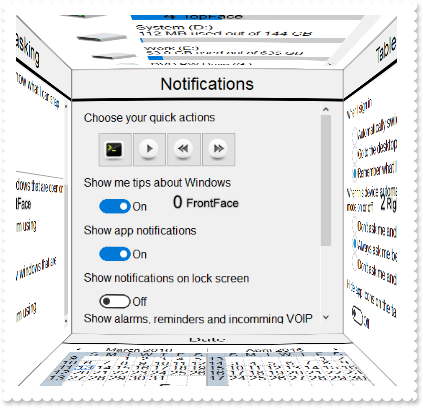

The
control includes 6-faces. The Face object specifies a face of a cube, and can
display a calendar control, a tree, and so on.
The following table shows how you can get a Face object ( the red items
indicates properties )
EXTREECUBELib.TreeCube
"BottomFace" -> EXTREECUBELib.Face
"DownFace" -> EXTREECUBELib.Face
"Face(FaceEnum)" -> EXTREECUBELib.Face
"FrontFace" -> EXTREECUBELib.Face
"LeftFace" -> EXTREECUBELib.Face
"RightFace" -> EXTREECUBELib.Face
"TopFace" -> EXTREECUBELib.Face
EXTREECUBELib.Face
"Neighbor(RotateEnum)" -> EXTREECUBELib.Face
EXTREECUBELib.FaceCalendar
"Face" -> EXTREECUBELib.Face
EXTREECUBELib.FacePicture
"Face" -> EXTREECUBELib.Face
EXTREECUBELib.FaceTree
"Face" -> EXTREECUBELib.Face
The following table shows how you can get a Face object ( the red items
indicates properties )
EXTREECUBELib.Face <- "BottomFace" of EXTREECUBELib.TreeCube
EXTREECUBELib.Face <- "DownFace" of EXTREECUBELib.TreeCube
EXTREECUBELib.Face <- "Face" of EXTREECUBELib.FaceTree
EXTREECUBELib.Face <- "Face(FaceEnum)" of EXTREECUBELib.TreeCube
EXTREECUBELib.Face <- "FrontFace" of EXTREECUBELib.TreeCube
EXTREECUBELib.Face <- "LeftFace" of EXTREECUBELib.TreeCube
EXTREECUBELib.Face <- "Neighbor(RotateEnum)" of EXTREECUBELib.Face
EXTREECUBELib.Face <- "RightFace" of EXTREECUBELib.TreeCube
EXTREECUBELib.Face <- "TopFace" of EXTREECUBELib.TreeCube
The Face object supports the following properties and methods:
| | Name | Description | |
| | CreateCalendar | Creates / Retrieves the FaceCalendar object to be shown on the current face. | |
| | CreatePicture | Creates / Retrieves the FacePicture object to be shown on the current face. | |
| | CreateTree | Creates / Retrieves the FaceTree object to be shown on the current face. | |
| | Enabled | Enables or disables the face. | |
| | ExtraTitle | Specifies any extra title on the face. | |
| | FaceCalendar | Retrieves the FaceCalendar object, while the Type property is exFaceCalendar. | |
| | FaceContent | Retrieves the Nothing/FacePicture/FaceCalendar/FaceTree content, based on the face's type. | |
| | FacePicture | Retrieves the FacePicture object, while the Type property is exFacePicture. | |
| | FaceTree | Retrieves the FaceTree object, while the Type property is exFaceTree. | |
| | Index | Indicates the index of the face. | |
| | Neighbor | Retrieves the neighbor of the face in giving direction. | |
| | Picture | Retrieves or sets a graphic to be displayed on the face. | |
| | RelativeMargins | Sets or retrieves a value that indicates the relative margins of the faces within the cube. | |
| | TexturePictureName | Specifies the comma-separated list of picture file name to be tried to load by the TexturePicturePath property. | |
| | Title | Specifies the title on the face. | |
| | TransparentContent | Gets or sets a value that indicates percent of the transparency to display the content of the face within the cube. | |
| | Type | Indicates the type of the window to be shown on the face. | |
| | Visible | Shows or hides the face's content. | |
