- hidden, exHideMarkZones
- on the back of the other elements as events, and so on, exShowMarkZonesBack
- on the front of the other elements as events, and so on, exShowMarkZonesFront ( by default )
- using a semi-transparent color, exShowMarkZonesSemi ( by default )
The MarkZones property gets the MarkZones collection. The MarkZones collection holds a set of MarkZone objects ( also called time-zone ). A MarkZone object holds information about a time-zone. A time-zone is identified by a Start/End date time, what can be highlighted in the schedule view. Use the Add method of the MarkZones collection to add a new time-zone to the control. The MarkZoneFromPoint property indicates the time-zone from the cursor.
The MarkZone object can:
- show a HTML/Image caption on a specified time-zone
- highlight a time-zone with a different background, pattern and so on, to indicate a restricted zone for instance.
A time-zone ( MarkZone object ) requires the Start/End to define the zone, while a timer ( MarkTime object ) requires a Time, that indicates where the timer is shown.

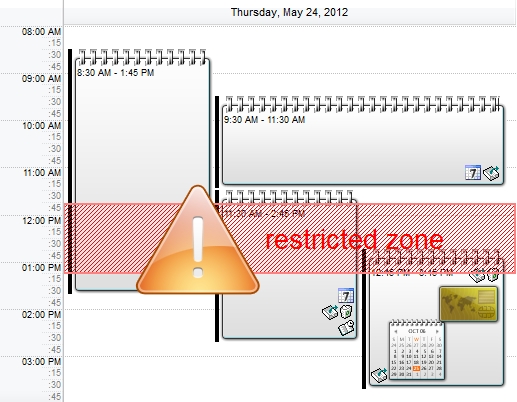

The following screen shot shows the time-zones on the front, exShowMarkZonesFront ( by default ):

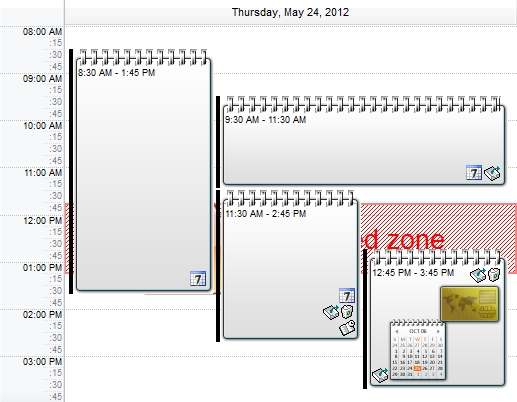

The following screen shot shows the time-zones on the back, exShowMarkZonesBack:

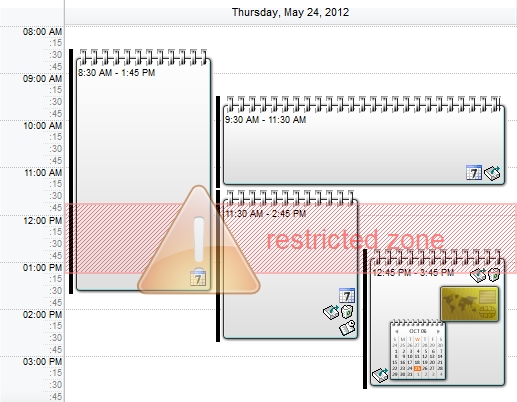

The following screen shot shows the time-zones using a semi-transparent color, exShowMarkZonesSemi:
