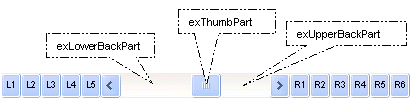

The ScrollPartEnum type defines the parts in the
control's scrollbar. Use the
ScrollPartVisible
property to specify the visible parts in the control's scroll bar. Use the
ScrollPartCaption
property to specify the caption being displayed in any part of the control's
scrollbar. The control fires the
ScrollButtonClick
event when the user clicks any button in the control's scrollbar.
| | Name | Value | Description | |
| |
exLeftB1Part | 32768
|
(L1) The first additional button, in the left or top area. By default, this
button is hidden.
| |
| |
exLeftB2Part | 16384
|
(L2) The second additional button, in the left or top area. By default, this
button is hidden.
| |
| |
exLeftB3Part | 8192
|
(L3) The third additional button, in the left or top area. By default, this
button is hidden.
| |
| |
exLeftB4Part | 4096
|
(L4) The forth additional button, in the left or top area. By default, this
button is hidden.
| |
| |
exLeftB5Part | 2048
|
(L5) The fifth additional button, in the left or top area. By default, this
button is hidden.
| |
| |
exLeftBPart | 1024
|
(<) The left or top button. By default, this button is visible.
| |
| |
exLowerBackPart | 512
|
The area between the left/top button and the thumb. By default, this part is
visible.
| |
| |
exThumbPart | 256
|
The thumb part or the scroll box region. By default, the thumb is visible.
| |
| |
exUpperBackPart | 128
|
The area between the thumb and the right/bottom button. By default, this part is
visible.
| |
| |
exBackgroundPart | 640
|
The union between the exLowerBackPart and the exUpperBackPart parts. By default,
this part is visible.
| |
| |
exRightBPart | 64
|
(>) The right or down button. By default, this button is visible.
| |
| |
exRightB1Part | 32
|
(R1) The first additional button in the right or down side. By default, this
button is hidden.
| |
| |
exRightB2Part | 16
|
(R2) The second additional button in the right or down side. By default, this
button is hidden.
| |
| |
exRightB3Part | 8
|
(R3) The third additional button in the right or down side. By default, this
button is hidden.
| |
| |
exRightB4Part | 4
|
(R4) The forth additional button in the right or down side. By default, this
button is hidden
| |
| |
exRightB5Part | 2
|
(R5) The fifth additional button in the right or down side. By default, this
button is hidden.
| |
| |
exRightB6Part | 1
|
(R6) The sixth additional button in the right or down side. By default, this
button is hidden.
| |
| |
exPartNone | 0
|
No part.
| |
