Use the SingleSort property to allow sorting by multiple columns. Sorting by a single column in the control is a simple matter of clicking on the column head. Sorting by multiple columns, however, is not so obvious. But it's actually quite easy. The user has two options to sort by multiple columns:

• First, sort by the first criterion, by clicking on the column head. Then hold the SHIFT key down as you click on a second heading.
• Click the column head and drag to the control's sort bar in the desired position.

By default, the SingleSort property is True, and so the user can have sorting by a single column only. Use the SortBarVisible property to show the control's sort bar. The SingleSort property is automatically set on False, if the SortBarVisible property is set to True. Use the SortOnClick property to specify the action that control should execute when the user clicks the control's header. Use the SortOrder property to sort a column programmatically. Use the SortPosition property to specify the position of the column in the sorted columns list. The control fires the Sort event when the user sorts a column. Use the ItemBySortPosition property to get the columns being sorted in their order.

For instance, if the control contains multiple sorted columns, changing the SingleSort property on True, erases all the columns in the sorting columns collection, and so no column is sorted.

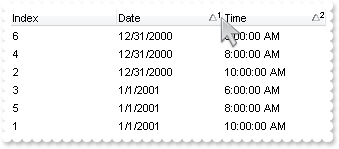

If the control display no sort bar ( SortBarVisible property is False ), the column's header displays the position of the sorting order as shown bellow ( multiple-columns sort ):
