Type | Description | |||
Boolean | A Boolean expression that specifies whether the control handles properties of the bars in the column's section. |

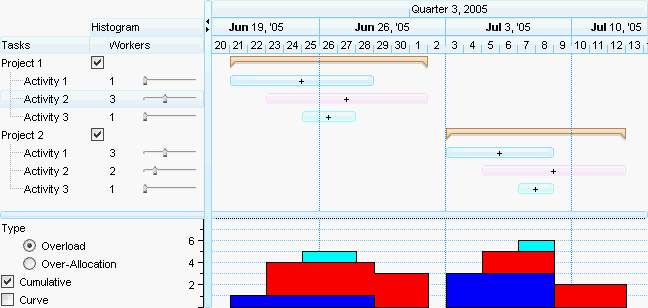

The following screen shot shows the association between ItemBar(exBarEffort) property of the bar with the cell in last column, so changing it is automatically reflected in the chart's histogram :
The cell's value can be associated with any property of the bar, using the:
Once an association between a cell and a bar is made, the CellValue property and ItemBar property returns the same result, or in other words, changing the cell's value will be reflected in the bar's property, and back, so changing the bar's property will change the cell's value.
The following VB sample display automatically the start and end dates of the bars in the Start and End columns:
With G2antt1 .BeginUpdate With .Columns .Add "Tasks" With .Add("Start") .Def(exCellValueToItemBarProperty) = 1 .Editor.EditType = DateType End With With .Add("End") .Def(exCellValueToItemBarProperty) = 2 .Editor.EditType = DateType End With End With With .Chart .FirstVisibleDate = #9/20/2006# .AllowLinkBars = True .AllowCreateBar = exNoCreateBar .LevelCount = 2 .PaneWidth(0) = 196 End With With .Items .AllowCellValueToItemBar = True .AddBar .AddItem("Task 1"),"Task",#9/21/2006#,#9/24/2006# .AddBar .AddItem("Task 2"),"Task",#9/22/2006#,#9/25/2006# .AddBar .AddItem("Task 3"),"Task",#9/23/2006#,#9/26/2006# End With .EndUpdate End WithThe following VB.NET sample display automatically the start and end dates of the bars in the Start and End columns:
With AxG2antt1 .BeginUpdate With .Columns .Add "Tasks" With .Add("Start") .Def(EXG2ANTTLib.DefColumnEnum.exCellValueToItemBarProperty) = 1 .Editor.EditType = EXG2ANTTLib.EditTypeEnum.DateType End With With .Add("End") .Def(EXG2ANTTLib.DefColumnEnum.exCellValueToItemBarProperty) = 2 .Editor.EditType = EXG2ANTTLib.EditTypeEnum.DateType End With End With With .Chart .FirstVisibleDate = #9/20/2006# .AllowLinkBars = True .AllowCreateBar = EXG2ANTTLib.CreateBarEnum.exNoCreateBar .LevelCount = 2 .PaneWidth(0) = 196 End With With .Items .AllowCellValueToItemBar = True .AddBar .AddItem("Task 1"),"Task",#9/21/2006#,#9/24/2006# .AddBar .AddItem("Task 2"),"Task",#9/22/2006#,#9/25/2006# .AddBar .AddItem("Task 3"),"Task",#9/23/2006#,#9/26/2006# End With .EndUpdate End WithThe following C++ sample display automatically the start and end dates of the bars in the Start and End columns:
/* Copy and paste the following directives to your header file as it defines the namespace 'EXG2ANTTLib' for the library: 'ExG2antt 1.0 Control Library' #import <ExG2antt.dll> using namespace EXG2ANTTLib; */ EXG2ANTTLib::IG2anttPtr spG2antt1 = GetDlgItem(IDC_G2ANTT1)->GetControlUnknown(); spG2antt1->BeginUpdate(); EXG2ANTTLib::IColumnsPtr var_Columns = spG2antt1->GetColumns(); var_Columns->Add(L"Tasks"); EXG2ANTTLib::IColumnPtr var_Column = ((EXG2ANTTLib::IColumnPtr)(var_Columns->Add(L"Start"))); var_Column->PutDef(EXG2ANTTLib::exCellValueToItemBarProperty,long(1)); var_Column->GetEditor()->PutEditType(EXG2ANTTLib::DateType); EXG2ANTTLib::IColumnPtr var_Column1 = ((EXG2ANTTLib::IColumnPtr)(var_Columns->Add(L"End"))); var_Column1->PutDef(EXG2ANTTLib::exCellValueToItemBarProperty,long(2)); var_Column1->GetEditor()->PutEditType(EXG2ANTTLib::DateType); EXG2ANTTLib::IChartPtr var_Chart = spG2antt1->GetChart(); var_Chart->PutFirstVisibleDate("9/20/2006"); var_Chart->PutAllowLinkBars(VARIANT_TRUE); var_Chart->PutAllowCreateBar(EXG2ANTTLib::exNoCreateBar); var_Chart->PutLevelCount(2); var_Chart->PutPaneWidth(0,196); EXG2ANTTLib::IItemsPtr var_Items = spG2antt1->GetItems(); var_Items->PutAllowCellValueToItemBar(VARIANT_TRUE); var_Items->AddBar(var_Items->AddItem("Task 1"),"Task","9/21/2006","9/24/2006",vtMissing,vtMissing); var_Items->AddBar(var_Items->AddItem("Task 2"),"Task","9/22/2006","9/25/2006",vtMissing,vtMissing); var_Items->AddBar(var_Items->AddItem("Task 3"),"Task","9/23/2006","9/26/2006",vtMissing,vtMissing); spG2antt1->EndUpdate();The following C# sample display automatically the start and end dates of the bars in the Start and End columns:
axG2antt1.BeginUpdate(); EXG2ANTTLib.Columns var_Columns = axG2antt1.Columns; var_Columns.Add("Tasks"); EXG2ANTTLib.Column var_Column = (var_Columns.Add("Start") as EXG2ANTTLib.Column); var_Column.set_Def(EXG2ANTTLib.DefColumnEnum.exCellValueToItemBarProperty,1); var_Column.Editor.EditType = EXG2ANTTLib.EditTypeEnum.DateType; EXG2ANTTLib.Column var_Column1 = (var_Columns.Add("End") as EXG2ANTTLib.Column); var_Column1.set_Def(EXG2ANTTLib.DefColumnEnum.exCellValueToItemBarProperty,2); var_Column1.Editor.EditType = EXG2ANTTLib.EditTypeEnum.DateType; EXG2ANTTLib.Chart var_Chart = axG2antt1.Chart; var_Chart.FirstVisibleDate = "9/20/2006"; var_Chart.AllowLinkBars = true; var_Chart.AllowCreateBar = EXG2ANTTLib.CreateBarEnum.exNoCreateBar; var_Chart.LevelCount = 2; var_Chart.set_PaneWidth(0 != 0,196); EXG2ANTTLib.Items var_Items = axG2antt1.Items; var_Items.AllowCellValueToItemBar = true; var_Items.AddBar(var_Items.AddItem("Task 1"),"Task","9/21/2006","9/24/2006",null,null); var_Items.AddBar(var_Items.AddItem("Task 2"),"Task","9/22/2006","9/25/2006",null,null); var_Items.AddBar(var_Items.AddItem("Task 3"),"Task","9/23/2006","9/26/2006",null,null); axG2antt1.EndUpdate();The following VFP sample display automatically the start and end dates of the bars in the Start and End columns:
with thisform.G2antt1 .BeginUpdate with .Columns .Add("Tasks") with .Add("Start") .Def(18) = 1 .Editor.EditType = 7 endwith with .Add("End") .Def(18) = 2 .Editor.EditType = 7 endwith endwith with .Chart .FirstVisibleDate = {^2006-9-20} .AllowLinkBars = .T. .AllowCreateBar = 0 .LevelCount = 2 .PaneWidth(0) = 196 endwith with .Items .AllowCellValueToItemBar = .T. .AddBar(.AddItem("Task 1"),"Task",{^2006-9-21},{^2006-9-24}) .AddBar(.AddItem("Task 2"),"Task",{^2006-9-22},{^2006-9-25}) .AddBar(.AddItem("Task 3"),"Task",{^2006-9-23},{^2006-9-26}) endwith .EndUpdate endwithThe following Delphi sample display automatically the start and end dates of the bars in the Start and End columns:
with AxG2antt1 do begin BeginUpdate(); with Columns do begin Add('Tasks'); with (Add('Start') as EXG2ANTTLib.Column) do begin Def[EXG2ANTTLib.DefColumnEnum.exCellValueToItemBarProperty] := TObject(1); Editor.EditType := EXG2ANTTLib.EditTypeEnum.DateType; end; with (Add('End') as EXG2ANTTLib.Column) do begin Def[EXG2ANTTLib.DefColumnEnum.exCellValueToItemBarProperty] := TObject(2); Editor.EditType := EXG2ANTTLib.EditTypeEnum.DateType; end; end; with Chart do begin FirstVisibleDate := '9/20/2006'; AllowLinkBars := True; AllowCreateBar := EXG2ANTTLib.CreateBarEnum.exNoCreateBar; LevelCount := 2; PaneWidth[0 <> 0] := 196; end; with Items do begin AllowCellValueToItemBar := True; AddBar(AddItem('Task 1'),'Task','9/21/2006','9/24/2006',Nil,Nil); AddBar(AddItem('Task 2'),'Task','9/22/2006','9/25/2006',Nil,Nil); AddBar(AddItem('Task 3'),'Task','9/23/2006','9/26/2006',Nil,Nil); end; EndUpdate(); end
